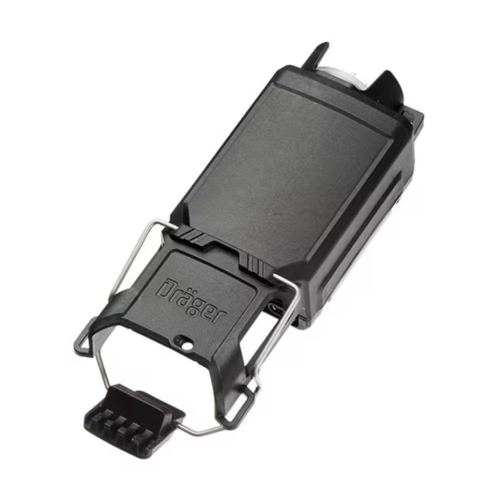

Bơm Dräger X-am®

<div>

<div>

<div>- Dimensions 67 x 175 x 38 mm (without X-am), 67 x 220 x 55 mm (with X-am).</div>

<div>- Weight approx. 200 g</div>

<div>- Operating temperature -20 °C to 50 °C (possibly -40 °C for short periods)</div>

<div>- Charging temperature 0 – 35 °C</div>

<div>- Charging time &lt;6 hours</div>

<div>- Operating time up to 20 hours, depending on type of use and temperature</div>

<div>- Maximum hose length 45 m</div>

<div>- Gas flow rate 0.4 l/min</div>

<div>- Storage temperature Up to 1 month at -20 °C to 60 °C, or -20 °C to 45 °C</div>

<div>- Pressure 700 hPA to 1,300 hPa</div>

<div>- Air humidity 0 to 95 % RH</div>

<div>- IP protection class IP67</div>

<div>- Certifications: CSA, ATEX/IECEx (Zone 0 T4 and M1), DNV-GL, CE,…</div>
